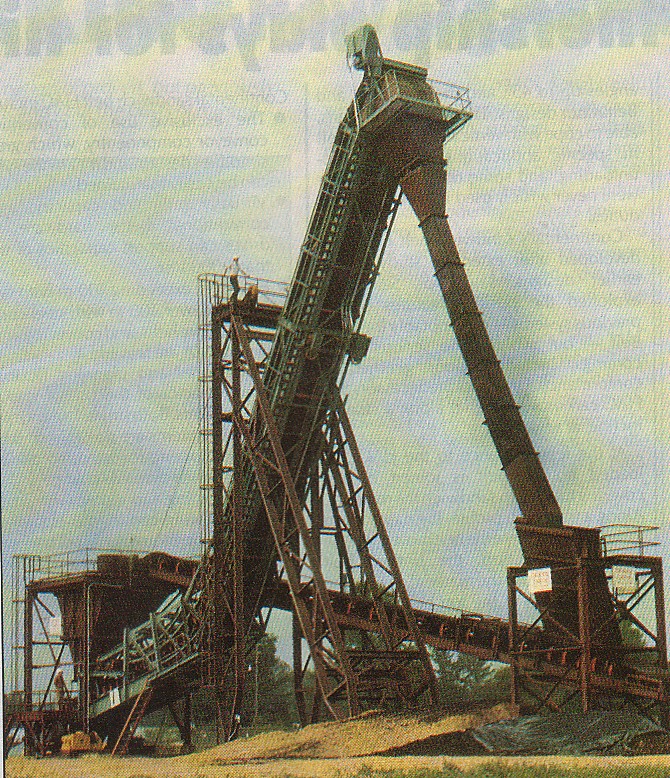

Material: Lignite, Coal, Copper Ore and Wast Rock, Iron Ore Pellets, Sand, Gravel, Grain
Conveying rate: 1955, 2468, 2684 MTPH (2155, 2721, 2959 STPH) Respectively for materials of density .8, 1.6, 2.4 mt/cum (50, 100, 150 PCF)
Conveying angle: Variable from 30 to 60 degrees
Belt width: 1524mm (60″)
Belt speed: Infinitely variable from 0 to 6.1 m/s (0 to 1200 FPM)
Lift: Variable 7.9 to 19.5 (26 to 64 ft)
Top belt drive: 74.6 kW (100 HP)
Bottom belt drive: 111.8 kW (150 HP)
